Why Precision Granite Bases & Plates Boost Tech & Economic ROI

Introduction: Unlocking Ultra-Precision Performance

In modern precision manufacturing, holding sub-micron tolerances calls for bases that stay steady despite shifts in temperature or cutting forces. A precision granite machine base gives the stable platform needed in tough machining and metrology setups.

Core Challenges in High-Precision Machining

Machine tool builders and metrology engineers often run into limits with metal structures on the shop floor. Temperature swings and heavy use expose those limits quickly.

• Thermal expansion errors: Metal frames grow and shift with factory temperature changes. This moves the reference points over time.
• Dynamic vibration chatter: Tool cuts and fast axis moves send small vibrations through the frame. Those vibrations hurt surface finish and shorten tool life.
• Material fatigue and distortion: Internal stresses in cast iron parts build up and cause slow warping. Accuracy drops after months of daily use.

Brand Role: Engineering Stability at SINCERE PRECISION

Overcoming these engineering hurdles requires engineered reference foundations built from naturally stable materials. Shops need bases that hold shape year after year.

• Precision foundation specialist: SINCERE PRECISIONis a specialized granite machine base manufacturer of high-end granite machine bases, precision granite surface plates, custom granite machine base systems, precision granite components, and granite measuring instruments.
• Proven quality assurance: Using high-density black stone such as Jinan Black, SINCERE PRECISION crafts master hand-lapped foundations. These deliver micron-level accuracy and long-term stability for equipment builders worldwide.
• Advanced manufacturing & quality control: Specialized CNC diamond grinding, precision drilling, and multi-stage hand-lapping take place in temperature-controlled workshops. SINCERE PRECISION delivers sub-micron geometric accuracy along with full CAD/DWG-based custom fabrication.

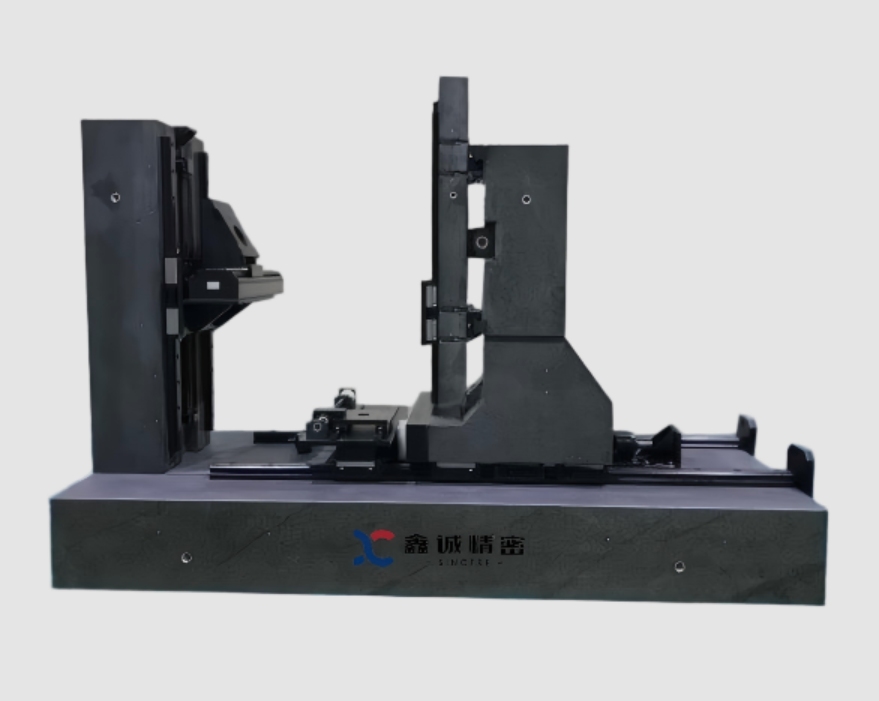

Technical Benefits: Why Granite Superiority is Unmatched

Natural granite offers physical properties that surpass traditional cast iron or welded steel structures in high-precision applications. These characteristics explain the key granite machine base benefits for advanced manufacturing equipment.

Superior Thermal Stability and Corrosion Resistance

Environmental control in manufacturing plants is rarely perfect, making thermal inertia essential for machine foundations.

• Minimal expansion coefficient: Featuring a thermal expansion coefficient of just 0.5 – 1.0 × 10^-6/°C—roughly 1/20th that of steel—granite machine base thermal stability eliminates heat-related dimensional distortion during extended operational cycles.
• Immunity to rust and chemicals: Granite does not oxidise or react with coolant oils, eliminating rust-prevention maintenance and preserving reference surfaces indefinitely.
• Non-magnetic and non-conductive insulation: Natural granite does not magnetize or conduct electricity, preventing magnetic interference with sensitive linear scales, sensors, and electronic measurement instruments.

High Vibration Damping and Dimensional Stability

Controlling dynamic vibration is critical for achieving mirror-like surface finishes and extending instrument life.

• Damping machine base advantages: The dense, crystalline matrix of black granite makes an effective vibration damping machine base, rapidly absorbing high-frequency vibrations and preventing chatter during high-speed machining or optical scanning.
• Granite machine base vibration damping: Superior granite machine base vibration damping protects precision motion systems from dynamic disturbances generated by spindles, motors, and rapid axis acceleration.
• Permanent structural relaxation: Because granite has naturally aged over millions of years, it possesses no residual internal stress, guaranteeing zero creep deformation over decades of heavy-duty use.
• High structural hardness and load capacity: Featuring a Shore hardness above 70–80 Hs and high compressive strength of 245–254 MPa, granite foundations resist wear and maintain stability under heavy dynamic loads.

Practical Application Scenarios & Solved Engineering Problems

Precision granite bases and components are applied across high-tech sectors to resolve specific structural and measurement pain points.

Machine Bases for Advanced Motion Systems

High-speed automated equipment requires structural rigidity to withstand sudden changes in direction without flexing.

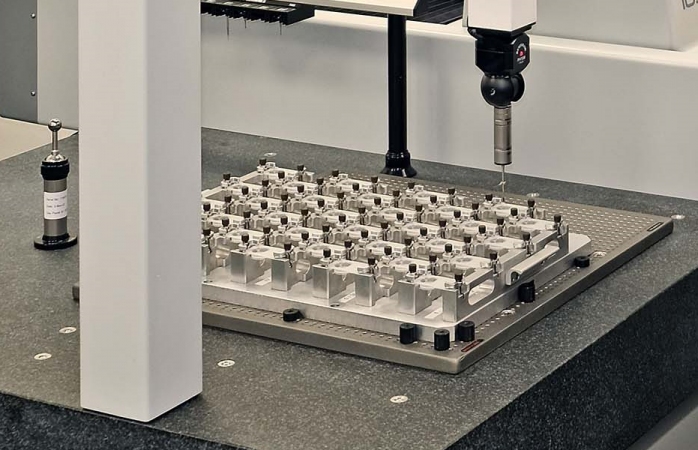

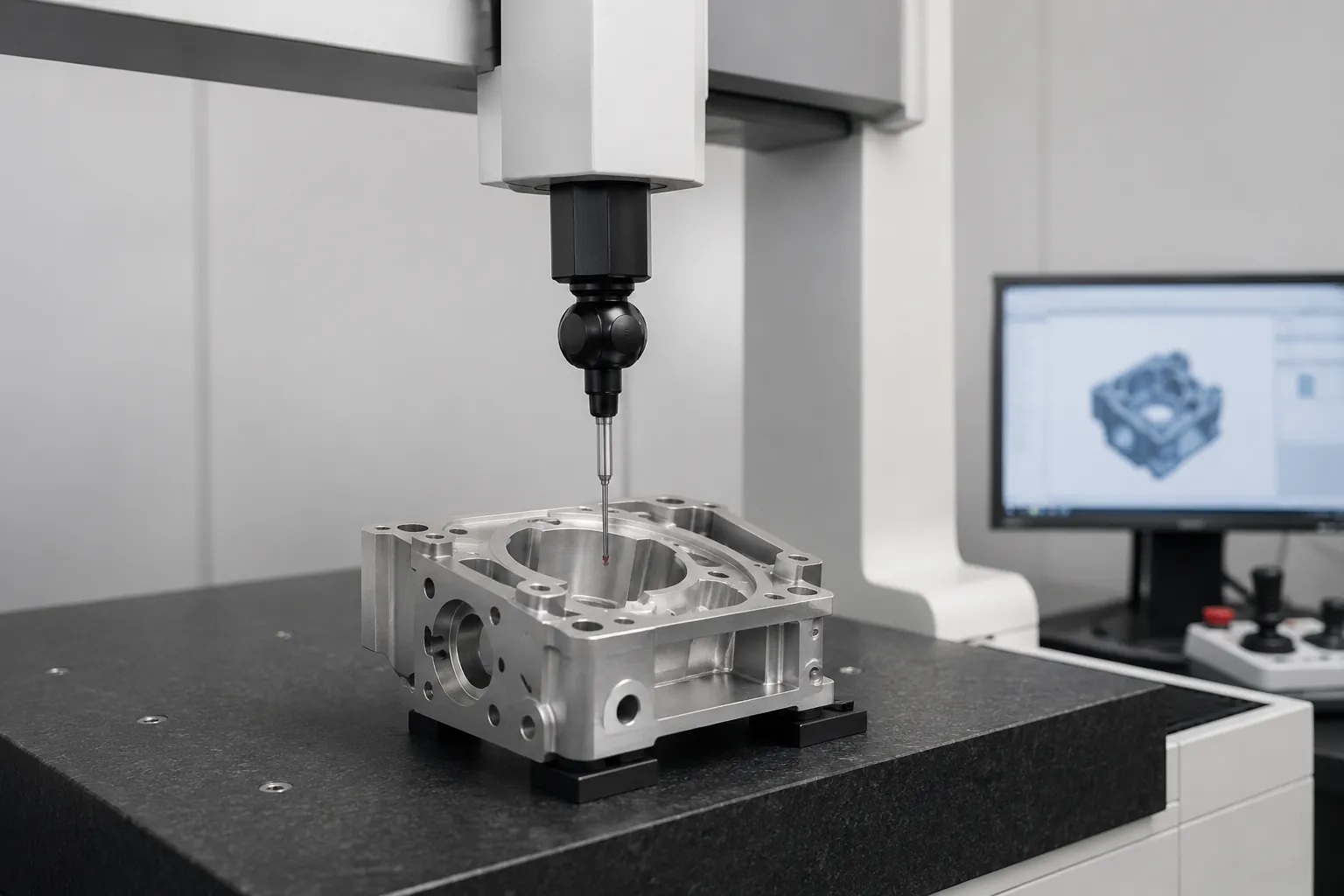

• Coordinate Measuring Machines (CMM): Integrating a precision granite base provides a stable, ultra-flat foundation that ensures touch-probe readings remain repeatable down to nanometers.
• Laser processing machinery: Installing a granite machine base for precision machining or a custom granite machine base for laser cutting or engraving dampens motor-driven dynamic forces, ensuring clean kerf lines and sub-micron positioning. (Note: Industrial Granite CNC equipment is used in raw stone quarry processing, whereas our focus is manufacturing the precision structural beds for high-end machine tools.)
• Air bearing stages: Precision-lapped granite rails and beds provide the flat surfaces required for air bearing motion stages in semiconductor wafer manufacturing.

Inspection Labs & Shop-Floor Calibration Tools

Maintaining quality control across production facilities requires dependable metrology reference tools.

• Granite Surface Plate: Serving as the fundamental reference plane in QC labs, granite surface plate benefits include high hardness and flatness up to DIN 876 Grade 00, ensuring accurate height measurement and layout work.
• Granite Surface Plate Flatness: Precision hand-lapping maintains strict granite surface plate flatness requirements for calibration and inspection applications.
• Granite Straight Edge: Applied directly on assembly lines to inspect the straightness, parallelism, and guide-way alignment of machine beds.
• Granite Master Square & Granite Tri Square: Used by field technicians to measure and calibrate the exact 90-degree perpendicularity of multi-axis machine tools.

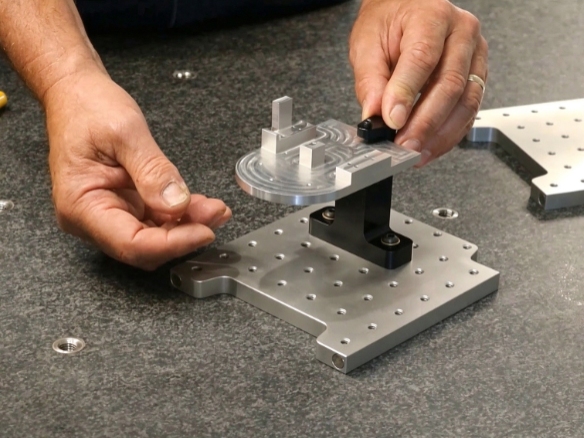

• Granite Cubes / Blocks: Provide rigid multi-sided datum surfaces for mounting, checking, and calibrating complex three-dimensional components during inspection.

Economic ROI & Custom Engineering Services

Adopting a machine tool granite base delivers substantial operational savings alongside technical upgrades.

Long-Term Economic Benefits

Evaluating granite foundations on a total cost of ownership (TCO) basis highlights clear financial advantages.

• Zero surface degradation costs: Scratches on granite do not throw up burrs, meaning accidental impacts won’t ruin overall plane accuracy or require costly emergency resurfacing.
• Extended equipment lifespan: Superior damping protects delicate linear drives, optical heads, and spindles from vibration wear, reducing long-term maintenance costs.
• Reduced maintenance and calibration overhead: Natural resistance to rust and corrosion eliminates protective oiling requirements, while long-term stability minimizes recalibration downtime to lower total operational costs.

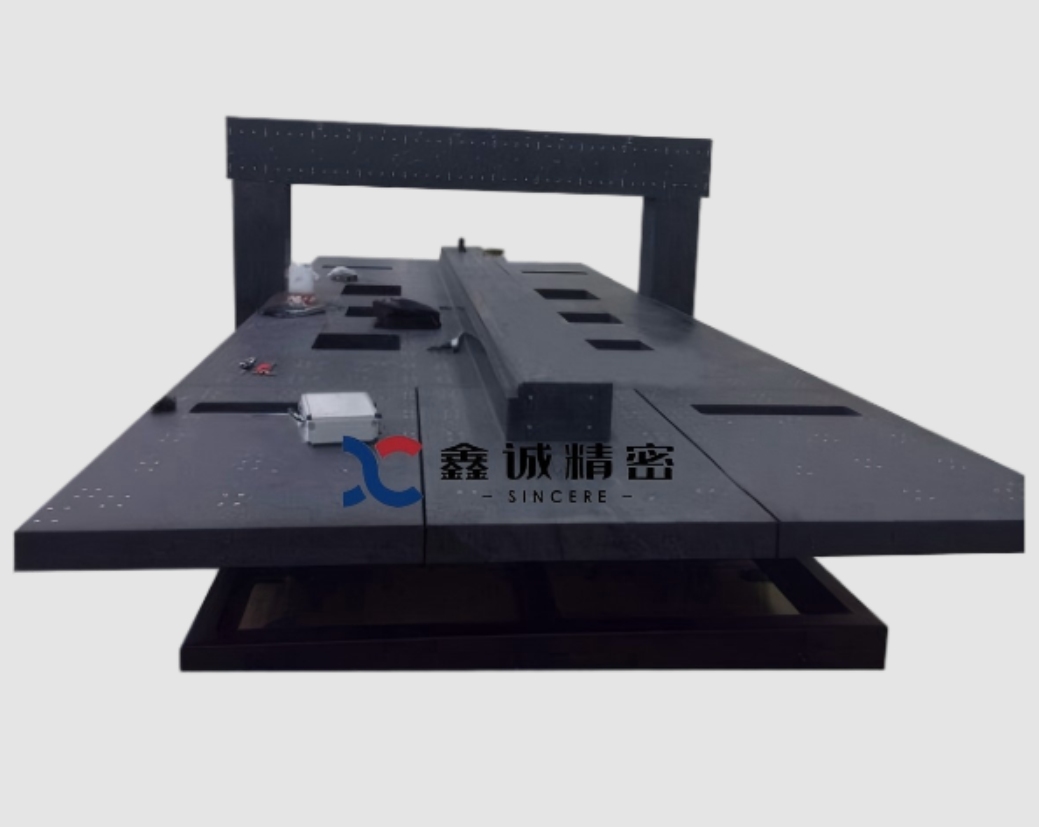

Service Capabilities of SINCERE PRECISION

SINCERE PRECISION supports original equipment manufacturers (OEMs) from initial design concepts through final installation.

• Tailored OEM customization: Engineering teams process customer DWG/DXF drawings to integrate embedded threaded inserts, precision T-slots, wire conduits, and air-bearing surfaces directly into precision granite components.
• Precision hand-lapping & fast delivery: Every foundation is meticulously hand-lapped to meet international specifications (DIN 876 / ASME AA), supported by prompt 25-day production timelines.
• Design optimization & IP protection: Dedicated engineering teams perform drawing research to optimize structural adaptability, bearing layouts, and precision requirements while offering guaranteed intellectual property protection.

Partner with SINCERE PRECISION for Ultimate Structural Stability

Upgrading to a precision granite machine base, machine tool granite base, or granite surface plate eliminates thermal drift, suppresses operational vibration, and delivers reliable measurement repeatability. Whether you are designing next-generation machine tools, laser processing systems, or upgrading quality control inspection rooms, choosing natural granite foundations ensures long-term operational success.

Ready to elevate your equipment performance? Contact SINCERE PRECISION today to submit your DWG/DXF drawings for a custom quotation and engineering consultation.

FAQ

Q: Why is natural granite preferred over cast iron for machine tool foundations?

A: Natural granite offers 1/20th the thermal expansion of steel, superior vibration damping, zero rust formation, and permanent freedom from internal stress warping, making it far more stable over time.

Q: How does ambient temperature change affect a granite surface plate compared to a steel plate?

A: Due to its low thermal expansion coefficient (0.5 – 1.0 × 10-6/°C), granite undergoes negligible dimensional change during temperature shifts, whereas steel plates warp and expand significantly, causing datum measurement errors.

Q: How often should precision granite surface plates and measuring tools be re-calibrated?

A: In standard laboratory settings, annual calibration is recommended; high-traffic shop-floor environments may require bi-annual calibration to verify Grade 00 or Grade 0 flatness standards.

Q: Can metal mounting threads and guide slots be installed directly into custom granite machine bases?

A: Yes, custom granite machine base systems can be precision-machined with glued epoxy threaded inserts, stainless steel T-slots, and air-bearing guide surfaces based on customer CAD drawings.
