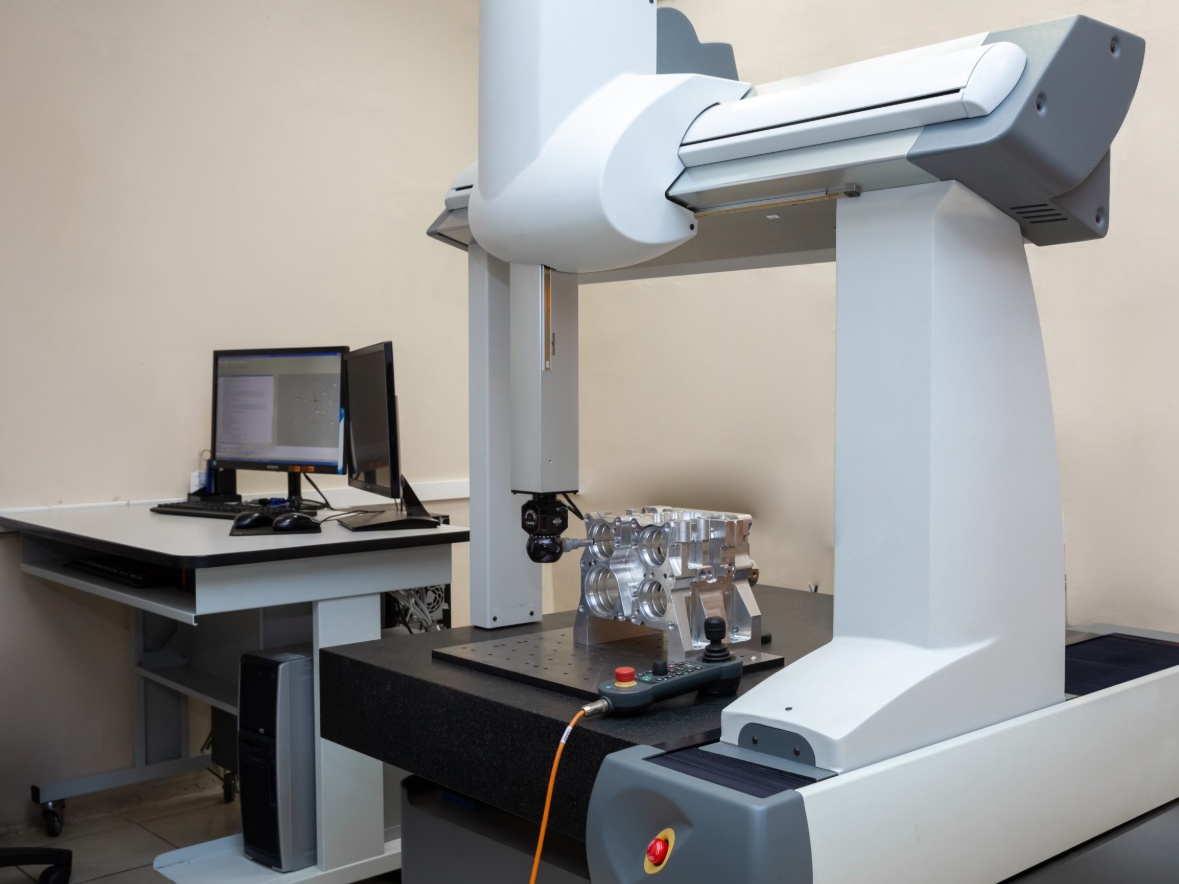

Custom AA-Grade Precision Granite Bases & Plates for Lab Systems

Structural Foundations for Next-Generation Precision Systems

As manufacturing tolerances shrink to the sub-micron scale, choosing the right precision granite base or precision granite surface plate determines long-term equipment accuracy and dynamic stability.

Introduction: The Sub-Micron Metrology and Laser Challenge

Modern industrial inspection, semiconductor fabrication, and high-speed laser machining require unprecedented dimensional stability under changing environmental conditions.

• High-Acceleration Motion: Coordinate measuring machines generate dynamic forces that can cause frame distortion on inferior bases, making a stable CMM granite base critical.
• Thermal Expansion: Metal structural components introduce unacceptable measurement errors in non-climate-controlled environments.
• Micro-Vibration Control: Vibrations from nearby equipment can corrupt sub-micron optical alignment and high-precision laser cutting accuracy, increasing demand for a vibration-damping granite base for laser machine applications.

About SINCERE PRECISION: Building Foundations for Modern Industry

SINCERE PRECISION is a globally recognized precision granite manufacturer delivering custom precision granite components, machine foundations, and metrology products for advanced equipment and laboratories.

• Industry Leadership: Serves top-tier international OEMs including Hexagon, SEREIN, Samsung Group, LG Group, and HANS LASER.
• Manufacturing Power: Operates specialized business units utilizing natural Jinan Black granite processed with aerospace-grade grinding and digital temperature-controlled hand-lapping.
• Core Offerings: Supplies CMM granite base structures, AA grade surface plates, custom granite machine base solutions, CMM structural bridges, ceramic square rulers, and a complete range of granite measuring tools.

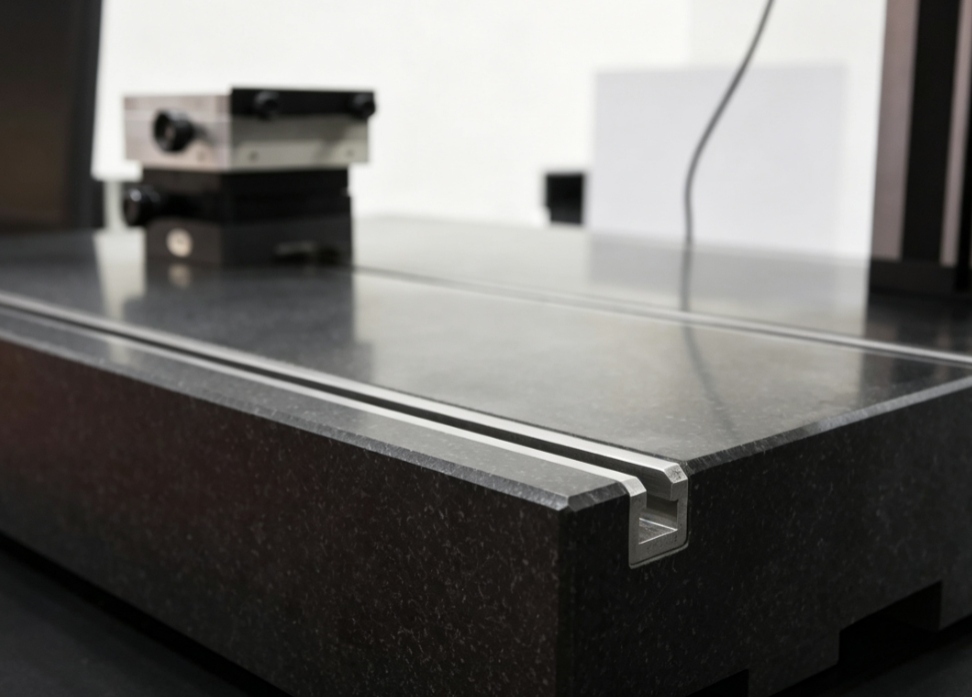

Physical Superiority of Precision Granite Over Metals

Natural black granite outperforms cast iron and steel across critical performance metrics in high-precision measurement environments.

Physical Properties and Stability of Jinan Black Granite

Selected Jinan Black granite features a dense crystalline quartz matrix that gives a precision granite base superior structural longevity.

• High Density & Strength: Specific gravity of 2970–3070 kg/m³ and compressive strength of 245–254 MPa ensure immense load-bearing capacity without deflection.
• Ultra-Low Thermal Expansion: A coefficient of thermal expansion averaging 4.6×10⁻⁶/°C minimizes dimensional movement during ambient temperature shifts.
• Natural Corrosion & Wear Resistance: Non-magnetic, rust-proof, and acid-resistant properties eliminate maintenance issues associated with cast iron platforms.

Resolving Practical Engineering Failures in CMM and Laser Applications

Replacing welded steel or cast iron frames with a precision granite base or custom granite machine base directly solves persistent field performance problems.

• Vibration Damping: Superior internal damping absorbs high-frequency vibrations from linear motor drives, allowing faster CMM settling times.
• Zero Internal Stress: Naturally aged for millions of years underground, granite components maintain shape stability without warping over decades of use.
• Air Bearing Compatibility: Mirror-smooth precision-lapped surfaces provide ideal guide tracks for ultra-smooth precision granite air bearing stages.

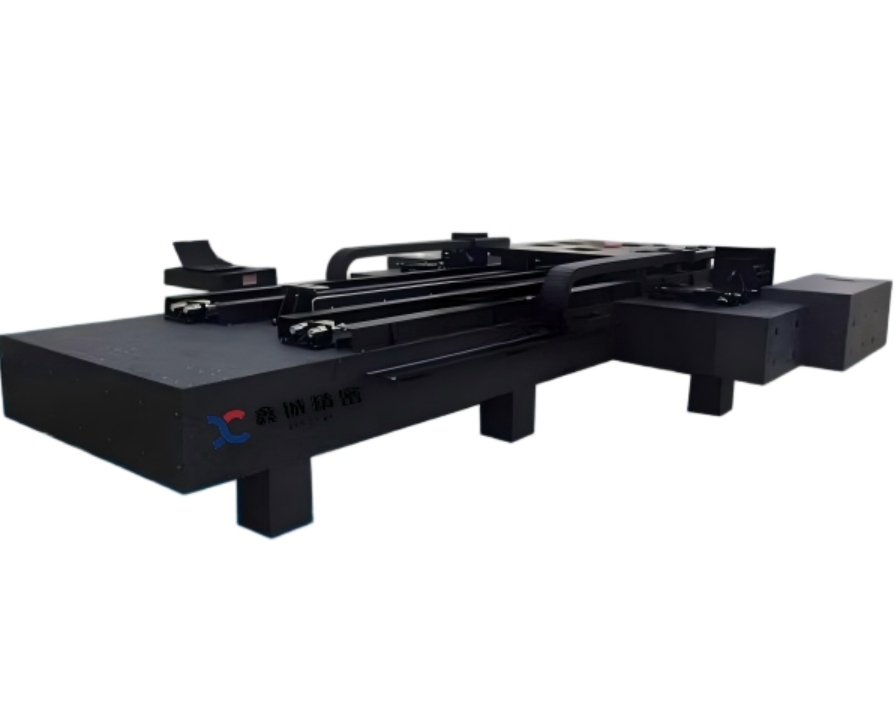

Comprehensive Granite Product Portfolio for Metrology and OEM Systems

SINCERE PRECISION delivers an integrated line of custom precision granite components, structural bases, and reference plates built to exact customer specifications.

Core Machine Foundations: CMM Granite Bases & Laser Machine Components

As an experienced CMM granite base manufacturer and CMM granite base supplier, SINCERE PRECISION crafts customized structural foundations for metrology and laser equipment.

• CMM Granite Base & Bridge: The CMM granite base features integrated stainless steel threaded inserts and precision guide ways designed to support bridge-type coordinate measuring machines under continuous high-load operation.
• Granite Base for Laser Machine: A granite base for a laser machine is designed for laser engraving and precision cutting systems, absorbing micro-vibrations from ultra-fast gantry movements to keep laser optics perfectly focused.
• Custom Precision Granite Components: Structural columns, crossrails, custom granite machine base assemblies, and machine beds can be tailored with custom slots and air-bearing surfaces per DXF/DWG drawings.

Datum Standards: AA Grade Granite Surface Plates & Custom Assemblies

Establishing a true zero-reference plane is essential for quality control labs and assembly stations. A high-quality precision granite surface plate provides the stable datum required for measurement and calibration.

• AA Grade Granite Surface Plate: Each AA grade granite surface plate is hand-lapped to meet DIN 876 Grade 00 and ASME B89.3.7 tolerances, serving as an ASME Grade AA granite surface plate for primary laboratory calibration.
• CMM Granite Surface Plate: A CMM granite surface plate is utilized as an ultra-flat reference bed within automated inspection cells and serves as a granite surface plate for CMM applications.
• Multi-Functional Integration: Custom T-slots, clearance holes, and resilient support pads allow the precision granite surface plate to support vibration-isolated 3-point mounting.

Precision Granite Measuring Tools: Straight Edges, Squares, and Boxes

SINCERE PRECISION manufactures high-accuracy measuring instruments for geometric alignment and machine tool verification.

• Granite Straight Edge: Essential for inspecting guideway parallelism, straightness, and flatness on machine tool beds up to several meters in length.
• Granite Master Square & Granite Tri-Square: Provide precise 90-degree reference planes to calibrate the X, Y, and Z axes of multi-axis CNC machines and CMM structures.
• Granite Square Box: Features six finished sides with strict perpendicularity and parallelism for 3D alignment and complex instrument setup.

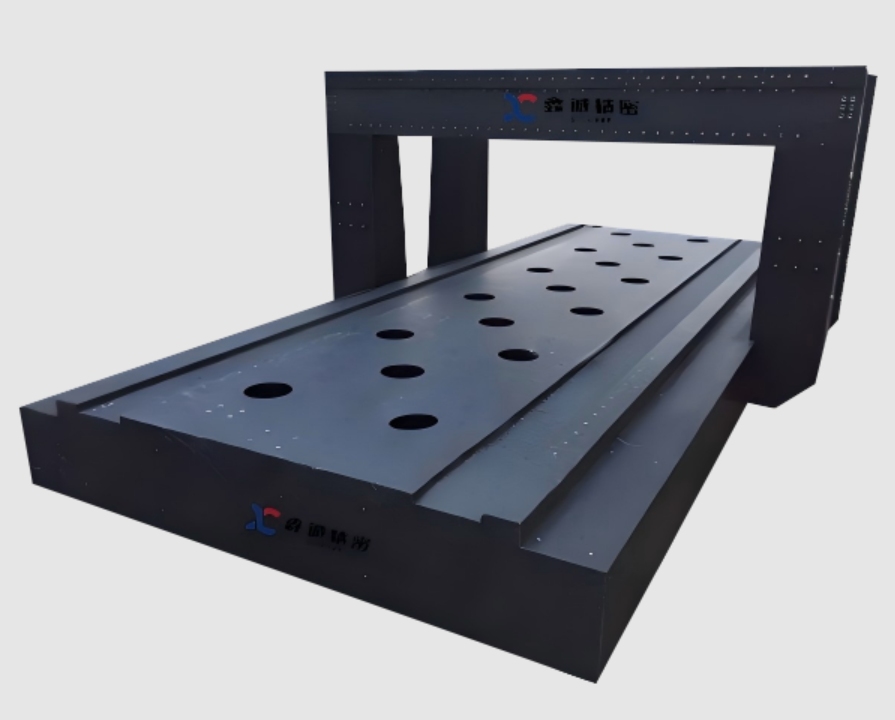

Global Services, Technical Customization, and Quality Assurance

Beyond manufacturing, SINCERE PRECISION offers complete technical integration, rapid manufacturing cycles, and ongoing metrology support as a global precision granite manufacturer.

Engineering Customization and Fast International Logistics

Our end-to-end service framework ensures seamless global delivery for international OEMs and laboratories requiring a CMM granite base, CMM granite surface plate, or other custom granite structures.

• Fast 25-Day Production Cycle: Standard custom manufacturing orders are completed within 25 days, reducing lead times for critical equipment builds.
• 24/7 Global Support: Dedicated account management aligned with global time zones delivers technical inquiries within 12 hours.
• Custom Engineering: In-house technical teams review customer drawings, run accuracy simulations, and configure embedded inserts or inserts/T-slots prior to production.

NIST-Traceable Calibration and Preventive Maintenance

Long-term precision requires active verification and maintenance over time.

• Traceable Calibration Systems: On-site and in-house resurfacing and calibration utilize electronic levels and auto-collimators traceable to NIST standards.
• Calibration Certificates: Every metrology granite surface plate, CMM granite surface plate, and base includes comprehensive “as-found” and “as-left” accuracy documentation.
• Proactive Maintenance Reminders: Automated recalibration alerts ensure equipment maintains compliance with DIN 876 or ASME standards throughout its operational lifecycle.

Elevate Your System Accuracy with SINCERE PRECISION

Upgrading your next-generation CMM, laser, or lab system starts with choosing a dependable granite foundation partner.

• Custom Engineering Review: Send your technical design drawings today to receive a comprehensive feasibility assessment for a custom granite machine base, AA grade granite surface plate, or other precision structure.
• End-to-End Partnership: Rely on a trusted CMM granite surface plate supplier, CMM granite base supplier, and precision granite manufacturer to achieve sub-micron reliability.
• Get in Touch: Partner with SINCERE PRECISION to secure fast delivery and AA-Grade performance for your global machinery projects.

FAQ

Q: Why is Jinan Black granite preferred over cast iron for CMM machine bases?

A: Jinan Black granite offers a lower thermal expansion coefficient, superior internal vibration damping, zero magnetization, and immunity to rust, making it suitable for a stable CMM granite base and long-term micron-level dimensional control.

Q: What is the difference between ASME Grade AA and Grade A granite surface plates?

A: An ASME Grade AA granite surface plate provides ultra-tight flatness tolerances required for temperature-controlled calibration labs and granite surface plate for CMM applications, whereas Grade A is tailored for general shop-floor quality control.

Q: Can custom precision granite components be fitted with metal inserts or guide tracks?

A: Yes, custom precision granite components can be fitted with epoxy-bonded stainless steel threaded inserts, precise T-slots, clearance holes, and hand-lapped air-bearing guide surfaces per engineering drawings.

Q: How often should an industrial granite surface plate be re-calibrated?

A: Annual or bi-annual calibration using NIST-traceable auto-collimators is recommended, depending on usage intensity and shop-floor environmental conditions, to verify flatness compliance for a metrology granite surface plate or precision granite surface plate.
