Custom Precision Granite Components RFQ: What to Include

A strong request for quotation (RFQ) for custom precision granite components gives a manufacturer enough engineering context to price the right part, plan inspection and identify risks early. Include the component’s function, drawing or sample, reference surfaces, interfaces, accuracy requirements, finish, packaging and acceptance documents. This approach helps buyers compare like-for-like offers and prevents late changes that can affect fit, measurement stability or installation.

Define the role and operating context of the part

Don’t just send a drawing with dimensions. Tell us what the part does and how it will be used.

• The Role: Is it a moving guideway, a static machine base, an inspection surface plate, or a vacuum chuck?
• The Environment: Will it be exposed to coolants, magnetic fields, or temperature fluctuations?
• The Load: What will be mounted on it? Knowing the load path helps us recommend the best support points to prevent deflection.

Why this matters: Understanding the application allows our engineers to suggest design optimizations for better stiffness, easier installation, and longer service life.

Why the RFQ matters for precision granite parts

Precision granite is used as a stable datum for measurement, positioning and equipment assembly. Sincere Precision manufactures custom components from natural black granite using mechanical cutting, multi-axis CNC machining, precision manual grinding and lapping. The material is non-magnetic, rust-free, resistant to acid and alkali corrosion, and suitable for inspection platforms, instrument bases, mounting platforms and vibration-isolation datums.

Those characteristics do not remove the need for a clear specification. A granite machine base, an inspection plate and an instrument support frame may use the same material family but have very different load paths, interfaces and inspection priorities. The RFQ should therefore describe the job the part must do, not only the material name.

For product details, see the custom precision granite components and inspection surface plates page.

The information to include in a custom granite components RFQ

1. Component role and operating context

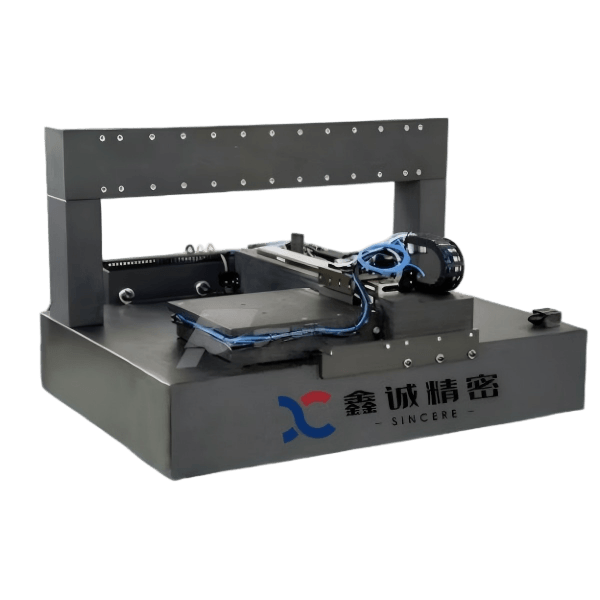

Start with the component’s position in the machine or inspection process. State whether it is a granite machine base, inspection surface plate, guideway, support frame, measuring bracket, instrument base or another custom granite mechanical component. Explain what sits on it, how it is loaded and whether it is part of a CMM, optical system, semiconductor tool, laser system, machining cell or laboratory fixture.

• Describe the measurement or assembly task and the reference datum the part must preserve.
• Identify static loads, moving loads, point loads and any clamping or lifting method.
• Note nearby heat sources, coolant, oils, magnets, vibration sources or corrosive chemicals.

A typical CMM project

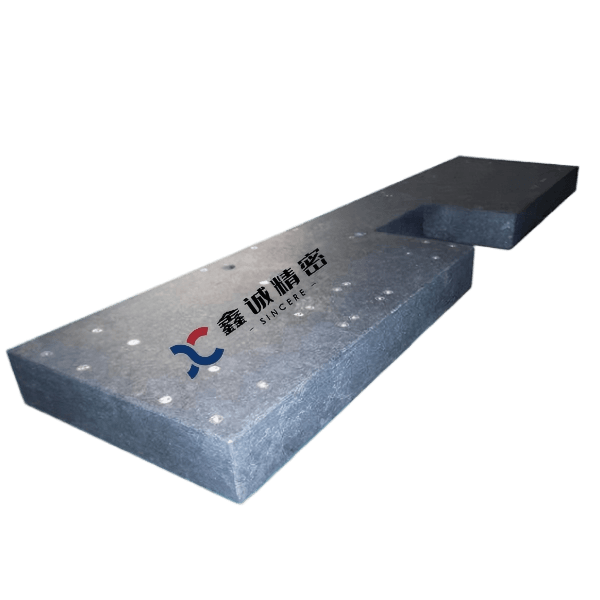

In a typical CMM project, the machine builder may initially send a base outline and the CMM footprint. A more useful RFQ also shows the machine mounting faces, moving components, cable or access clearances, support points and the datum that must remain stable during measurement. This gives the manufacturer a practical basis for reviewing stiffness, hole locations and installation fit before production.

2. Drawing, sample and interface data

Attach the latest controlled drawing whenever possible. Mark the revision, units and critical-to-function dimensions. If a drawing is not ready, provide a sample, a marked-up sketch or a 3D model plus a written list of interfaces. Sincere Precision can manufacture parts from customer drawings or samples and can support independent product design and drawing optimization based on the application and working conditions.

• Show mounting holes, inserts, slots, reference edges, datum features and keep-out zones.
• Identify threaded features by standard, size, depth and material or insert requirement.
• State whether the supplier may propose geometry changes for manufacturability, stiffness or packaging.

3. Accuracy, geometry and inspection requirements

Separate the features that locate the part from those that are cosmetic or secondary. Define flatness, parallelism, perpendicularity, straightness, hole position and surface finish only where they affect the application. If a grade or standard is required, name it explicitly and state how the result will be accepted. Sincere Precision’s granite surface plate specifications reference DIN, JIS and GB standards, and its pre-delivery inspection covers dimensional accuracy, flatness, parallelism and appearance.

Avoid asking for a vague “highest accuracy” or “zero error” result. Those phrases are difficult to price and verify. Instead, identify the measurement method, reference temperature if controlled by your quality system, and the report or certificate format required for release.

A custom inspection platform example

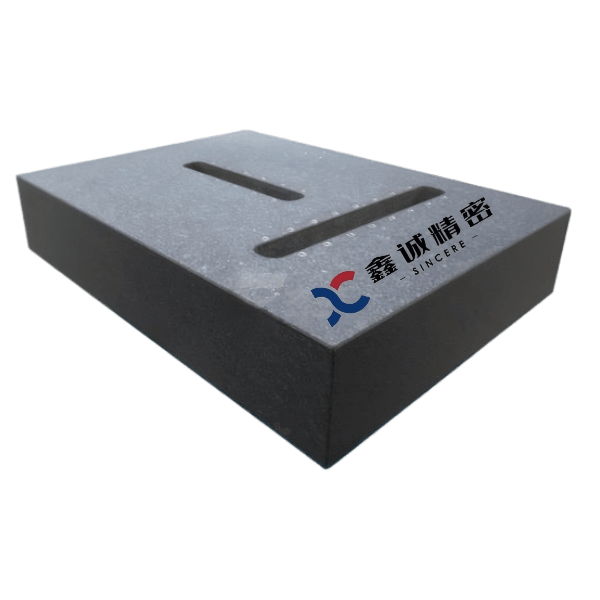

Consider a granite platform used to inspect machined parts. The useful specification is not simply “a flat granite plate.” The RFQ may need to identify the primary reference surface, parallelism to the mounting face, locating holes or slots, the inspection method and the report required for acceptance. If the platform is later used with a fixture or sensor, including those interfaces at the start can prevent rework after machining.

4. Material, finish and working features

Natural black granite is the primary material used for these custom components. Sincere Precision maintains reserves of Jinan Green Granite, Indian Granite and South African Granite. If stone origin, color uniformity or a specific finish matters to your application, include it as a purchasing requirement rather than assuming all granite behaves identically.

• Specify lapped, ground, painted, marked or otherwise finished surfaces where relevant.
• List T-slots, vacuum grooves, pockets, tapped inserts, edge chamfers and logo or identification marks.
• State whether the part must be supplied with a supporting stand, isolation hardware or installation accessories.

5. Packaging, logistics and project documents

Large granite components can be damaged by shock, impact, improper lifting or inadequate restraint during transport. Ask the supplier to show the proposed lifting points, center of gravity, handling instructions and export packaging in the quotation or project file. Sincere Precision uses shockproof, moisture-resistant, export-standard packaging and provides formal quotation, production drawings, technical specifications, inspection reports, bill of lading, insurance documents, packing list and certificate of origin as required by the project.

Clarify the delivery basis and destination before comparing prices. Standard orders can be delivered to Qingdao Port within 15 working days, but a custom project’s timing should be confirmed against drawing approval, inspection and packaging scope. Treat this timing as a reference for standard orders, not a universal promise.

An export delivery scenario

For an overseas shipment, the practical questions often arise after the granite part is already finished: Where can it be lifted? What is the center of gravity? How will it be restrained in the crate? Which documents must travel with it? Agreeing these points during quotation helps align the component, export packaging and installation plan before dispatch.

Custom Granite Component RFQ Checklist

Use this checklist to confirm that the quotation request covers the engineering, inspection and delivery information needed for a comparable supplier response.

Precision parts require precision handling — especially large granite components.

• Inspection: Let us know if you need a specific inspection report format or third-party certification.
• Packaging:Granite is heavy and brittle. If you have specific requirements for lifting points, center of gravity marking, or export packaging (e.g., fumigation-free crates for air freight), include these in the RFQ.
• Documents:Sincere Precision provides formal quotations, production drawings we producing according, technical specifications, inspection reports, packing lists, bills of lading, insurance documents, certificates of origin, if other documents need , you can indicate in advance.

A practical RFQ review sequence

1. Freeze the application brief: function, loads, environment and interfaces.
2. Issue the controlled drawing or sample package with revision and units.
3. Mark critical datums and define the inspection evidence needed for acceptance.
4. Ask for the proposed stone, process route, support method, packaging and delivery basis.
5. Compare quotations by included scope, documents and risk assumptions, not unit price alone.
6. Approve a final drawing and inspection plan before production starts.

How Sincere Precision supports custom projects

Sincere Precision provides OEM/ODM services covering function, specifications, finish and packaging, supporting projects from trial orders through mass production.

We don’t just cut stone — we engineer stability. By providing the details above, you allow us to:

1.Optimize your design for manufacturability

2.Select the best material batch from our reserves

3.Ensure safe delivery with our shockproof export packaging

4.Support OEM/ODM projects from trial orders through mass production

The scope of high-end customization services can be reviewed before the RFQ is finalized.

Payment terms and after-sales responsibilities are outlined in Payment & After-Sales.

Conclusion: make the quote comparable before it becomes urgent

A strong RFQ for custom precision granite components connects the application to measurable acceptance criteria. Give the supplier the drawing, load path, interfaces, datums, environment, finish, packaging and document requirements in one controlled package. Then ask the quotation to identify assumptions, exclusions and inspection evidence. For a drawing review or a project-specific proposal, contact Sincere Precision through the Contact Us page.

FAQ

Q: Can a supplier quote a custom granite component from a sample?

A: Yes. Sincere Precision can produce precision granite mechanical components according to customer drawings or samples. A sample should be accompanied by a description of its function, critical interfaces, revision status and required inspection evidence so the quotation reflects the intended part.

Q: Which standards should be named in the RFQ?

A: Name the standard that your quality system or end customer requires. Sincere Precision’s granite surface plate specifications reference DIN, JIS and GB, but the appropriate grade and acceptance method depend on the component and its application. Do not treat a general standard reference as proof of a particular tolerance unless it is written into the approved specification.

Q: Should installation hardware be included?

A: Include it when the component’s stability depends on a support stand, isolation points, lifting features or auxiliary clamping. Ask the supplier to separate the granite part, hardware and installation service in the quote so the scope is transparent.

Q: What documents should be requested before shipment?

A: Request the approved drawing, technical specification, dimensional and appearance inspection report, packing list and any origin, insurance or shipping documents needed for your project. Sincere Precision can also provide mounting guidance and formal project-document support; agree the exact document set before production.
