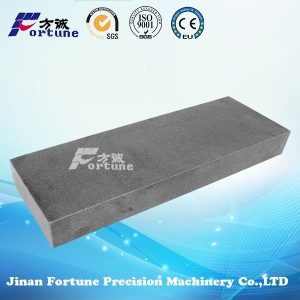

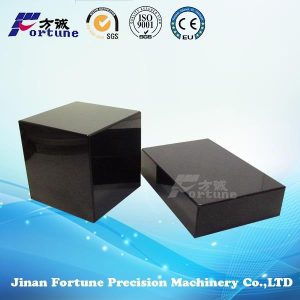

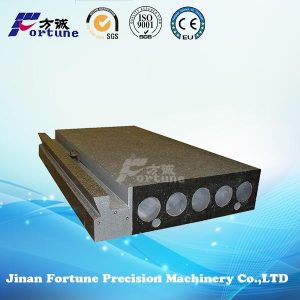

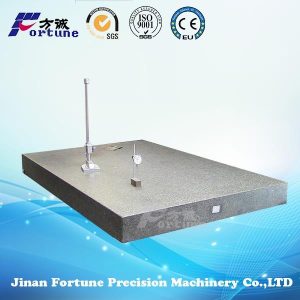

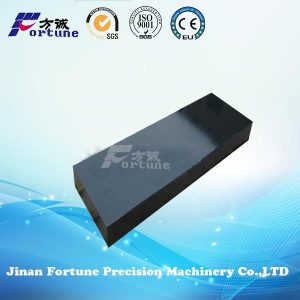

18 X 24 Granite Surface Plate
18 X 24 Granite Surface Plate

Our wide range of granite surface plate is manufactured in compliance with international quality standards. These granite surface plates are highly durable, reliable, resistant to corrosion and are easy to maintain. We offer entire range of granite surface plate at highly competitive prices.
Features:
Closed grained & uniform texture
Very hard, high wear resistance & extreme rigidity.
Outstanding dimensional stability
Least affected by temperature changes
Non-corrosive & easy maintenance
Least subjected to internal stresses
Suction-free & non-magnetic
Lifting facility provided for standard sizes
Top surface lapped smooth & flat
Inspected by electronic level, precision level & auto collimator traceable
Dust cover provided for top surface.
Optional Features:
Threaded steel inserts as per your layout & size
“T” slot to suit your requirement
M.S. Stand or C.I. supporting columns with leveling provision
Lifting handles for smaller plates
Any type of bores, holes etc. to suit your requirements
Bench center & other attachments
Accuracies on side faces
Specification:
| Standard Sizes L X W mm |
Thickness mm |
Flatness Tolerance in Microns | |
| As per DIN-876-1984 |
As per IS-7327-2003 |
||
| 400 x 400 | 80 | 3 | 4.5 |
| 630 x 400 | 80 | 4 | 5 |
| 630 x 630 | 80 | 4 | 5 |
| 900 x 600 | 150 | 4 | 6 |
| 1000 x 630 | 150 | 4 | 6 |
| 1000 x 1000 | 150 | 4 | 7 |
| 1200 x 900 | 150 | 5 | 7 |
| 1600 x 1000 | 200 | 6 | 8 |
| 2000 x 1000 | 200 | 6 | 9.5 |
| … | … | … | … |
| 10000*8000 | 8000 | … | … |
