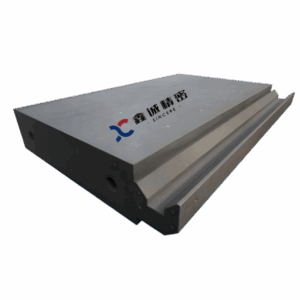

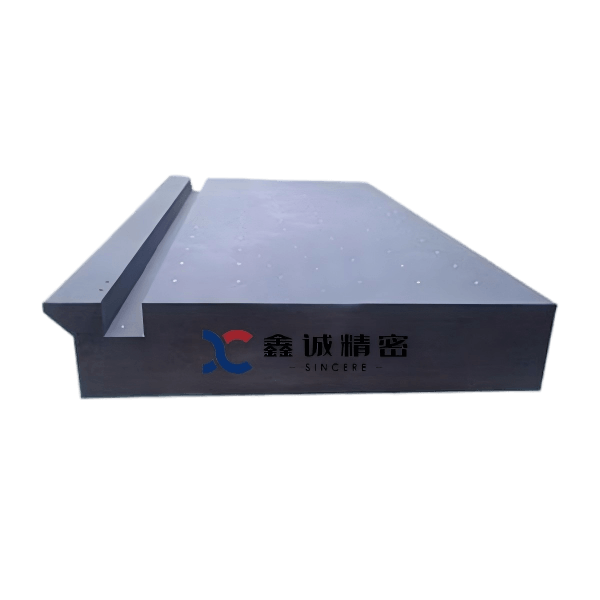

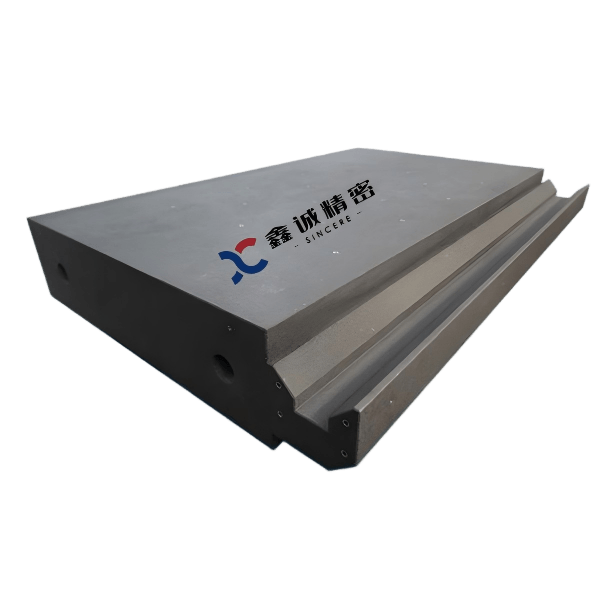

The precision granite surface plate with T-slots, manufactured at our factory Shandong Sincere Precision Granite Company Limited, serves as a stable natural black granite datum platform for precision inspection, tool setup and fixture mounting. We select premium Jinan black granite blanks as raw material. Through rough sawing, CNC precision grinding and final hand lapping, we create ultra-stable reference surfaces and heavy-load bearing platforms. This is not regular stone; it is a foundational metrology component widely adopted in precision manufacturing.

Beyond delivering ultra-flat reference planes for machinery assembly, our factory offers custom T-slot machining on granite surface plates. A standard granite plate works as a static datum. Adding accurately machined T-slots transforms it into a dynamic, multi-functional work platform for clamping fixtures, gauges and workpieces. Our T-slot processing combines years of practical machining know-how, strict quality control and precision equipment.

Processing Technology for Machining T-Slots on High-Precision Granite Surface Plates

High-Precision CNC Slot Machining Once the main reference surface of the granite plate is fully finished, T-slots are machined and fine-ground inside our constant temperature & humidity workshop. We use dedicated diamond grinding heads on CNC machines to maintain tight tolerance on slot positioning, straightness and perpendicularity.

Special Forming & Finishing After CNC grinding, slot shoulders and side walls go through manual finishing and chamfer work. This removes tiny chipping risks, relieves local stress that may cause edge cracking, and ensures T-bolts and fixtures slide smoothly and lock firmly.

Systematic Accuracy Control We always follow the “datum-first” rule. The granite plate’s top reference surface is finished to target precision grade first. Only after the main datum is verified do we start T-slot CNC machining. All work takes place under controlled temperature and humidity. Laser interferometers carry out real-time measurement and error compensation during production. It keeps good straightness, perpendicularity and positional tolerance between T-slots and the main reference plane. The finished plate forms a complete spatial datum system, ensuring repeatable, reliable positioning for clamped parts.

RAQ（Repeatedly Asked Questions）

Q1: Can T-slots be added to an existing granite surface plate I already own? A: Generally we do not recommend retrofitting T-slots on finished plates. Cutting slots releases internal stone stress and may distort the original flatness. T-slots are best machined as part of the whole manufacturing process on new blanks at our factory Shandong Sincere Precision Granite Company Limited.

Q2: What accuracy grades are available for granite surface plates with T-slots? A: We can produce Grade 00, Grade 0 and Grade A plates with custom T-slot layouts. Higher grades require stricter temperature control during slot grinding and longer inspection time, which affects lead time and pricing.

Q3: Can you customize T-slot size, spacing and quantity? A: Yes. Our factory accepts custom layouts. Send your drawing or specifications, including slot dimension, positions, plate overall size and required precision grade, so we can quote accordingly.

RFQ Section (Request For Quote block on page)

Ready to get a quotation for your T-slot granite surface plate? Please provide these details when sending your RFQ:

1. Overall dimension of granite plate (length × width × thickness)
2. Required accuracy grade (00 /0 /A)
3. T-slot size, number of slots and layout drawing
4. Quantity and target delivery timeline
5. Special requirements such as threaded inserts, lifting lugs or certification

Send your inquiry to us. Our engineering team from Shandong Sincere Precision Granite Company Limited will review your specs and reply with factory quotation and lead time.
